【Product Performance】
Aluminum Alloy Water-Based Drawing Fluid is a lubricating and cooling fluid designed for the drawing processing of non-ferrous metal materials such as aluminum and copper. Its main function is to reduce friction, reduce mold wear, improve processing quality, and prevent defects such as scratches and cracks in the material during the drawing process. Among them, CUT-524A is a high-performance Aluminum Alloy Water-Based Drawing Fluid, which is widely used in the field of metal processing due to its superior lubricity, oxidation resistance and easy cleaning properties.
【Product Parameters】
Test Items | Parameter |
Appearance of original solution | Brown, transparent |
density | 0.88-0.92 g·cm³(20°) |
concentration | ≥80 |
pH value | 8±0.5 |
Appearance of diluent | milky |
【Usage】
1. The oil tank or oil tank should be cleaned before using this product. It is strictly prohibited to mix it with other oil products. It should be stirred evenly before use.
2. Water-to-water ratio: direct raw solution stretching or water-to-water ratio: raw solution: water = 1: (1-5)
3. The working fluid concentration should not be less than 5. The appropriate working fluid concentration should be adjusted according to different anti-rust requirements.
【Packaging Specifications】

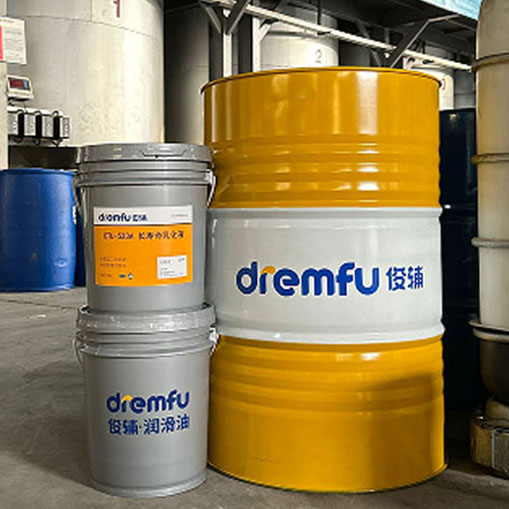

18L/plastic bucket, 200L/large iron bucket.
Aluminum Alloy Water-Based Drawing FluidCUT-524A .pdf
Main features
Excellent lubrication performance – forms a stable lubricating film, effectively reduces friction, reduces tensile force, prevents scratches and cracks, and improves the quality of finished products.
Strong antioxidant ability – prevents non-ferrous metals such as aluminum and copper from discoloring or corroding due to oxidation during processing.
Easy to clean – adopts a water-based formula, easy to clean with water or neutral detergent, no residual oil, and reduces subsequent cleaning costs.
Mold protection – effectively reduces mold wear, reduces carbon deposition, increases mold life, and reduces maintenance costs.
Environmentally friendly and safe – does not contain harmful solvents, has no odor, complies with environmental regulations, and reduces health risks to operators.
Main advantages
Improve processing efficiency: excellent lubrication effect, makes metal easier to form, reduces scrap rate, and improves production efficiency.
Reduce downtime maintenance: reduce mold loss, extend service life, and reduce replacement and repair costs.
Improve product quality: reduce scratches and cracks during stretching and improve product surface finish.
Environmentally friendly and pollution-free: non-toxic, harmless, low odor, more friendly to the environment and operators.
Scope of application
CUT-524A and other aluminum alloy water-based stretching fluids are widely used in the following metal processing fields:
Stretching of non-ferrous metals such as aluminum and copper (such as deep drawing process of aluminum plates, aluminum tubes, and aluminum profiles)
Metal stamping and forming (auto parts, electronic product housings, aerospace materials)
Aluminum containers and packaging (such as aluminum cans, aluminum shells, food packaging)
Home appliances and 3C products (mobile phone housings, laptop housings, air conditioning parts, etc.)
Safety and environmental protection
Does not contain heavy metals and harmful solvents, and complies with environmental protection standards such as ROHS and REACH.
Low volatility and low odor reduce the impact on the health of operators.
Non-corrosive, will not cause damage to equipment and molds.
CUT-524A aluminum alloy water-based stretching fluid provides an efficient and reliable solution for the stretching processing of aluminum and copper materials with its excellent lubricity, oxidation resistance and environmental protection. It can improve production efficiency, extend mold life, and ensure product quality. It is an important auxiliary material in the metal processing industry.
FAQ
1. What metals are suitable for your Aluminum Alloy Water-Based Drawing Fluid?
Dremfu's water-based drawing fluid CUT-524A is suitable for the drawing, stamping and forming of non-ferrous metals such as aluminum and copper, and is particularly suitable for the manufacture of aluminum plates, aluminum tubes, aluminum profiles and metal containers.
2. Can your products reduce problems such as scratches and cracks?
Yes, CUT-524A has excellent lubricity, which can effectively reduce friction, prevent scratches, cracks and mold damage caused by the drawing process, and improve the surface finish of the product.
3. Does your drawing fluid protect the mold?
Yes, our products can reduce mold wear and carbon deposition, reduce maintenance costs, and effectively extend the service life of the mold.
4. Can samples be provided for testing when purchasing?
Yes, Dremfu supports the provision of small batch samples. Customers can test the effect in actual production and purchase in bulk after confirming that it meets the needs.
5. Are your products environmentally friendly and what standards do they meet?
Yes, our stretching fluid does not contain heavy metals, harmless solvents, and complies with international environmental standards such as ROHS and REACH. It has low odor, low volatility, and is friendly to operators and the environment.
6. Is there a discount for large quantities?
Yes, we will provide a tiered price discount based on the purchase quantity. The larger the order, the more favorable the unit price. You can contact us for a detailed quotation plan.
7. What are the requirements for transportation and storage?
This product is a water-based formula and does not require special transportation conditions. Avoid high temperature, severe cold and direct sunlight when storing. It is recommended to store in a dry environment at 5-35°C. The shelf life is generally 12-18 months.
8. Can you provide technical support?
Of course, we provide pre-sales formula selection suggestions, usage guidance, and after-sales technical support to help customers optimize the use effect and improve production efficiency.
9. How long is your delivery cycle?
Under normal circumstances, we have sufficient inventory and can ship within 3-7 days. If you need large-volume customization, the delivery cycle may take 2-4 weeks. Please consult the sales team for the specific delivery time.
10. What are the payment methods?
We accept bank transfer (T/T), letter of credit (L/C), PayPal and other methods. The specific payment terms can be negotiated based on the purchase quantity.
If you have more questions, please contact Dremfu for detailed information!
