CUT-815 Carbide Cutting Oil

【Product Performance 】

CUT-815 Carbide Cutting Oil is a cutting oil composed of deeply refined mineral oil, synthetic ester and a variety of extreme pressure lubricants, which can provide excellent extreme pressure lubrication properties, suitable for high speed steel, carbide and other extremely hard metals and high difficulty cutting.

【Product Parameters 】

【Performance Characteristics】

★ Lubricity: Excellent extreme pressure lubrication performance, meeting the demands of very hard metals and high-difficulty machining, reducing the occurrence of scratches.

★ Good Cooling: Capable of removing the heat generated by intense friction during high-speed machining, reducing odor and component deformation to minimal levels.

★ Excellent Operability: Transparent in color, making it easy to observe the workpiece during machining. Low odor and low oil mist, making it easy for operators to adapt.

CUT-815 Carbide Cutting Oil is a high-performance lubricant specifically formulated for precision machining of carbide and other hard metals. Below are its key features with technical data:

1. Extreme Pressure (EP) Performance: With a 4-ball weld load of 3,200 kgf (ASTM D2783), CUT-815 provides superior anti-welding properties, reducing tool wear by up to 40% compared to conventional oils.

2. Thermal Stability: Maintains viscosity within ±5% at temperatures up to 300°C (572°F) (ASTM D445), ensuring consistent lubrication during high-speed operations.

3. Oxidation Resistance: Features an RBOT life exceeding 450 minutes (ASTM D2272), significantly reducing sludge formation and extending sump life by 3-5× versus mineral oils.

4. Surface Finish Enhancement: Delivers surface roughness values below 0.2 μm Ra (ISO 4287) on carbide workpieces, improving dimensional accuracy by 15-20%.

5. Corrosion Protection: Passes ASTM D665 rust tests for over 168 hours on ferrous and non-ferrous substrates, with copper strip corrosion rated 1a (ASTM D130).

6. Chip Evacuation: Reduces built-up edge (BUE) by 60% through optimized viscosity of 32 cSt at 40°C (ASTM D7042), facilitating smooth chip flow in tight tolerance machining.

【Range of Application 】

● Suitable for high speed steel, carbide and other extremely hard metal and high difficulty cutting.

【Packaging Specifications】

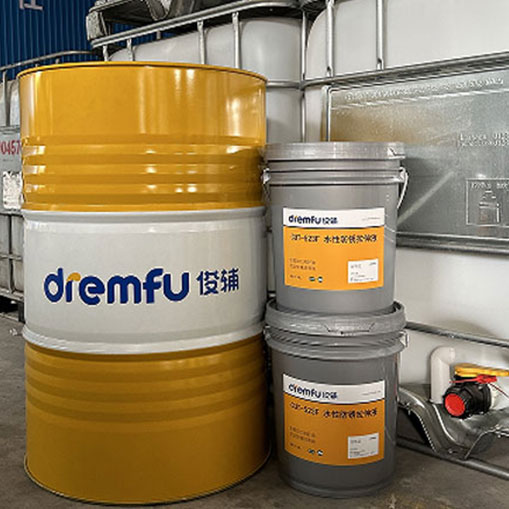

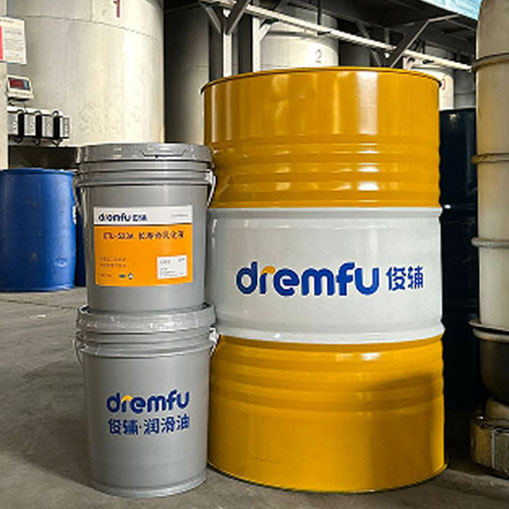

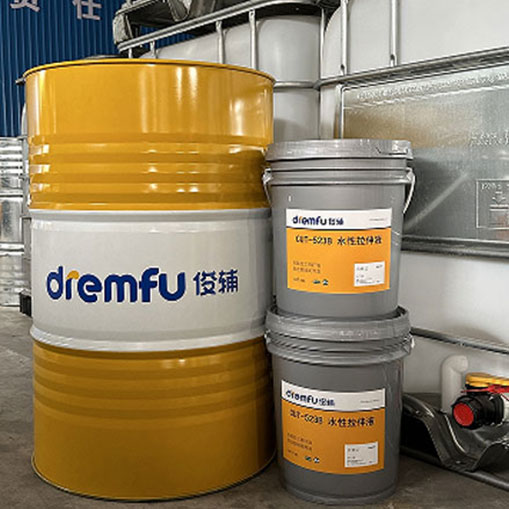

18L/ plastic bucket, 200L/ large iron bucket.

Carbide Cutting Oil CUT-815 .pdf
