CUT-527B Stainless Steel Microemulsion Cutting Fluid

【Product Performance】

CUT-527B Stainless Steel Microemulsion Cutting Fluid is a microemulsion Cutting Fluid specially designed for processing materials such as stainless steel, a type of black metal. Formulated with high-quality imported additives, it offers exceptional lubrication and rust prevention properties. It has low odor, low foam, and is gentle on the skin. This product significantly extends the lifespan of cutting tools, making it the best choice for processing materials like stainless steel and other black metals.

【product parameters】

【usage method】

1. Before using this product, clean the machine, oil tank, or oil sump thoroughly. It is strictly prohibited to mix with other oils. Stir evenly before use.

2. Dilution ratio: Concentrate to water = 1:(1:20).

3. The concentration of the working fluid should not be lower than 5. Adjust the concentration of the working fluid appropriately according to different processing techniques, materials, and rust prevention requirements.

4. Note: For rust prevention, after 3 days, water can be added at a ratio of 10:1. After 7 days, water can be added at a ratio of 5 to 7 parts water to 1 part concentrate. After 10 to 15 days, water can be added at a ratio of 3 to 5 parts water to 1 part concentrate.

CUT-527B Stainless Steel Microemulsion Cutting Fluid is a high-performance lubricant designed for precision machining of stainless steel and other hard alloys. Below are its key features with technical specifications:

1. Extreme Pressure Lubrication
The fluid contains advanced sulfur-chlorine EP additives, achieving a PB value of 1,250N (ASTM D2783) and a weld load of 3,200N, reducing tool wear by up to 40% during heavy-duty operations like threading or grooving.

2. Microemulsion Stability
With a particle size of 50-100nm (DLS tested) and 0.1% sedimentation after 30 days, the microemulsion structure ensures consistent cooling performance across a temperature range of 5-55°C without stratification.

3. Corrosion Inhibition
Passes ASTM D4627 standards with 0% rust formation on stainless steel after 168 hours in 5% concentration. The pH stabilizes at 8.5-9.2, protecting machine components from electrochemical corrosion.

4. Thermal Management
Exhibits a specific heat capacity of 3.8 J/g°C and reduces cutting zone temperatures by 150-200°C compared to dry cutting, verified by infrared thermography during turning of 316L stainless at 250m/min.

5. Surface Finish Enhancement
Achieves Ra 0.2-0.4μm surface roughness in finish machining, a 30% improvement over conventional emulsions, as measured per ISO 4288 on martensitic stainless workpieces.

6. Environmental Compliance
Formulated with ≤0.1% chlorinated paraffins and biodegradability of 85% (OECD 301F). Meets ISO 14001 standards with VOC content below 50g/L.

【packaging specifications】

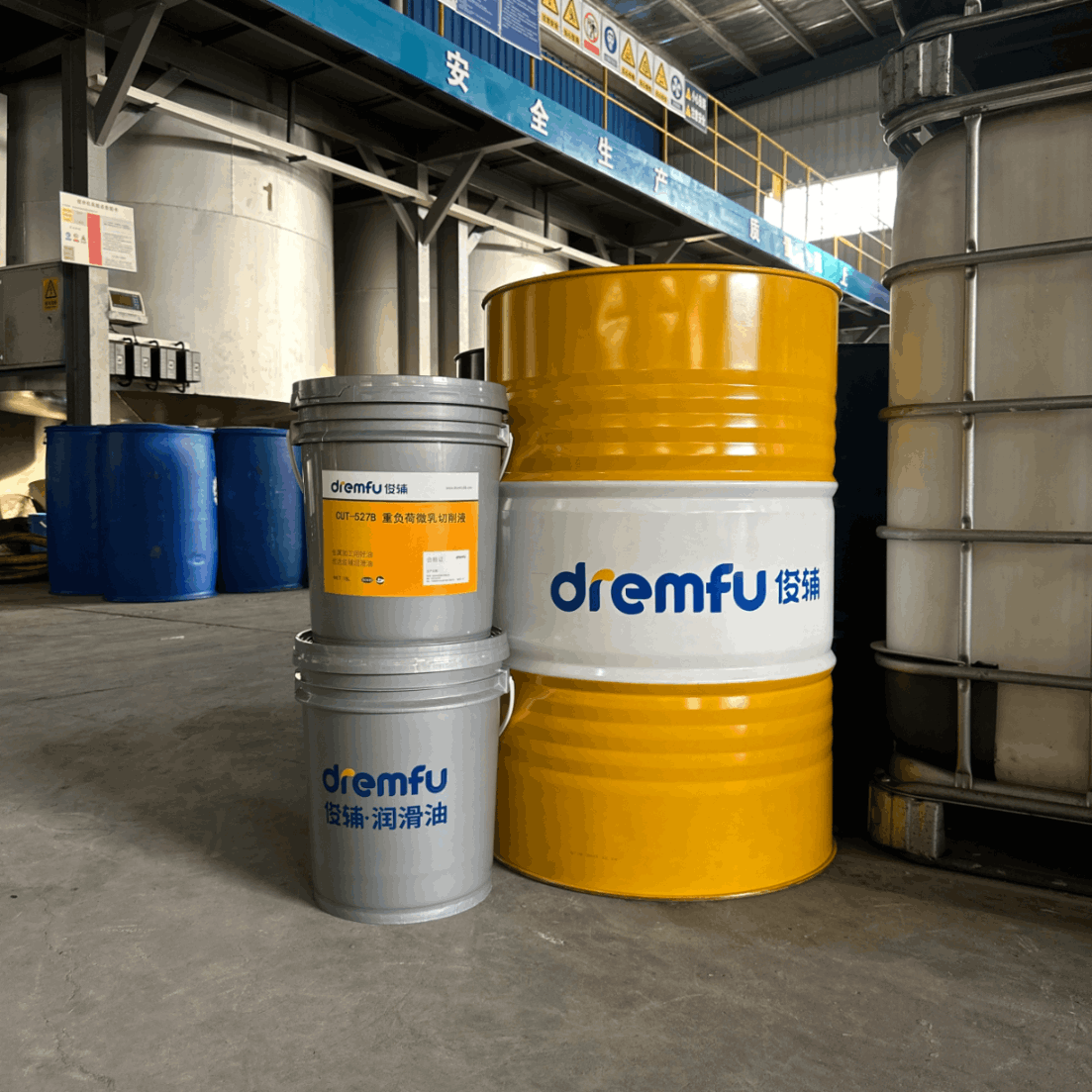

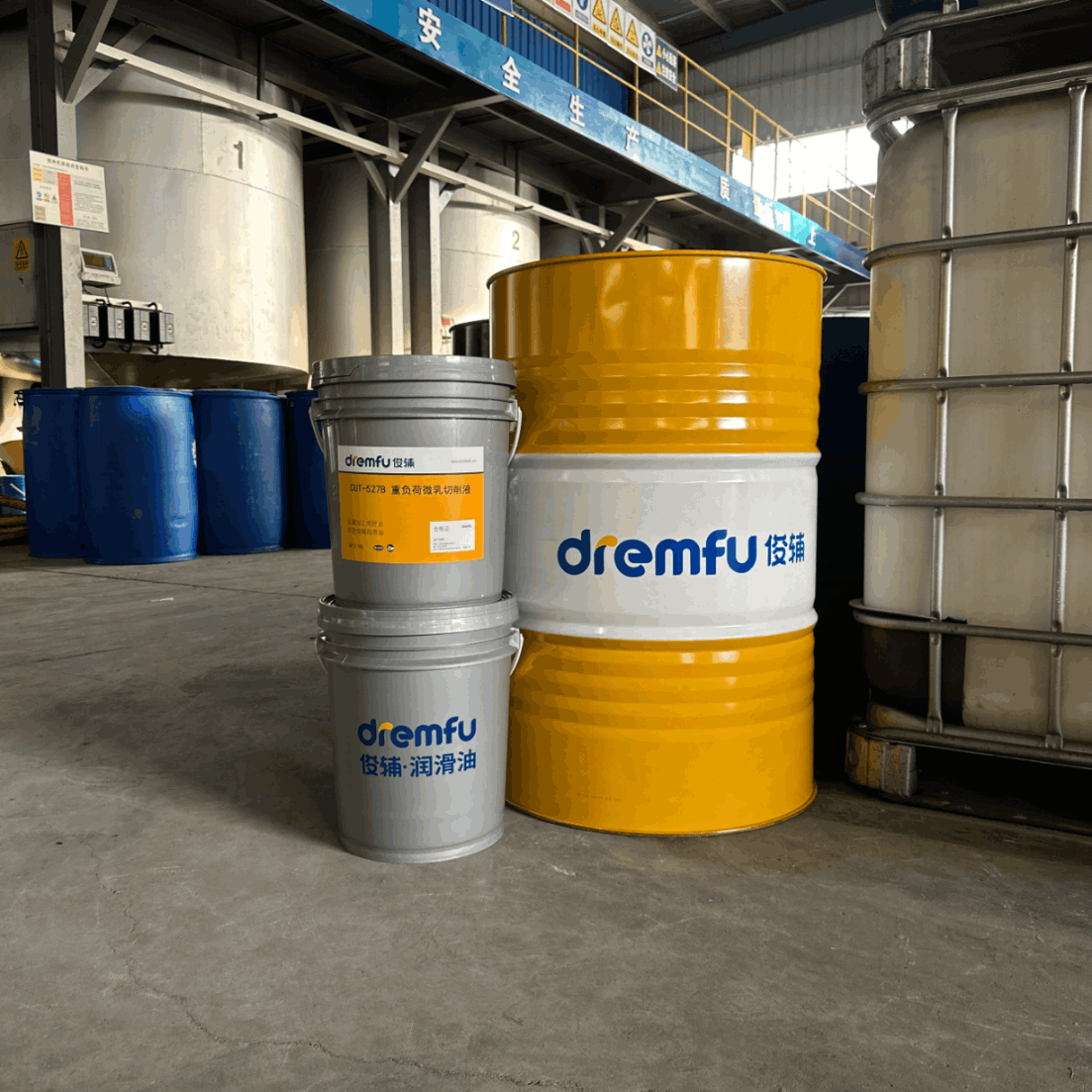

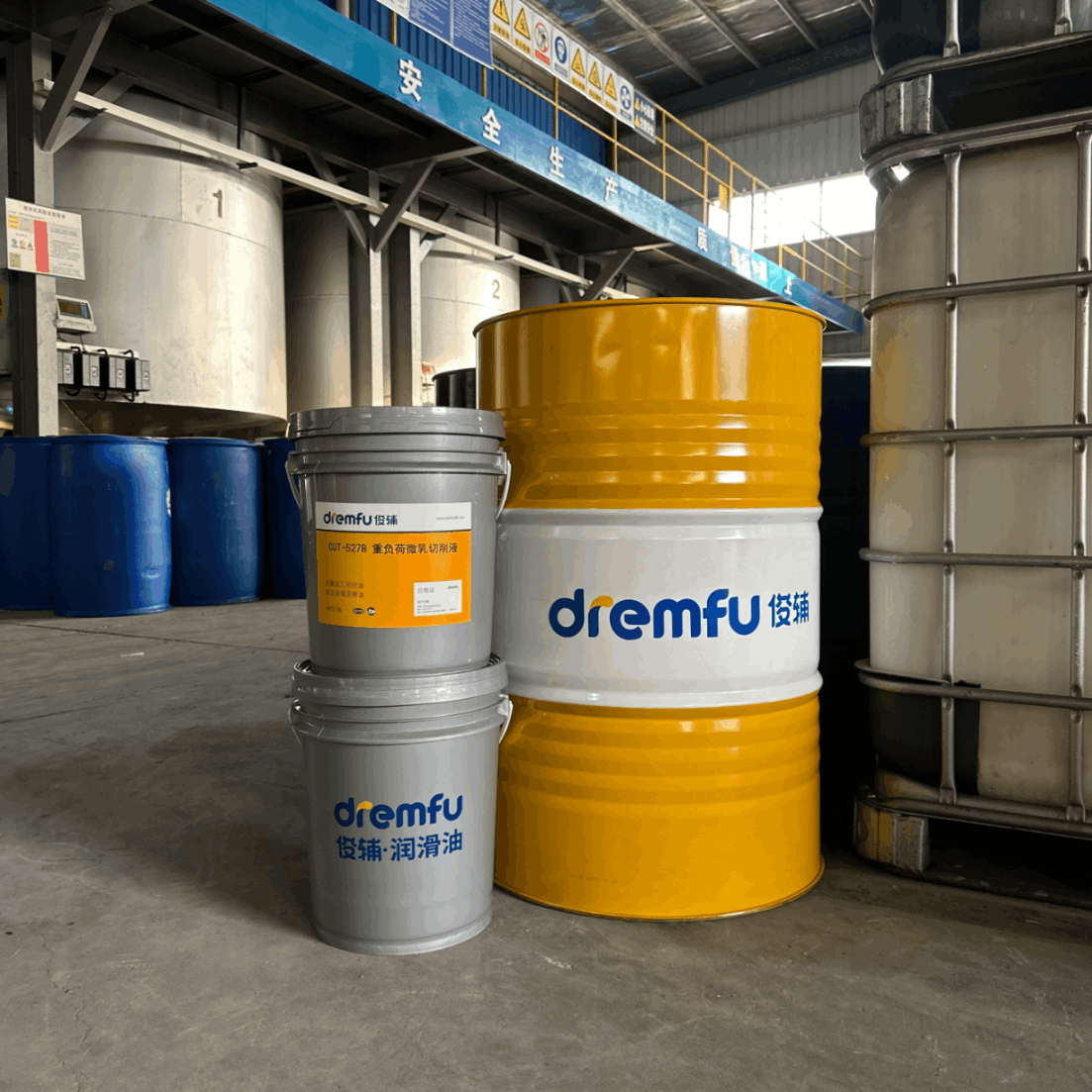

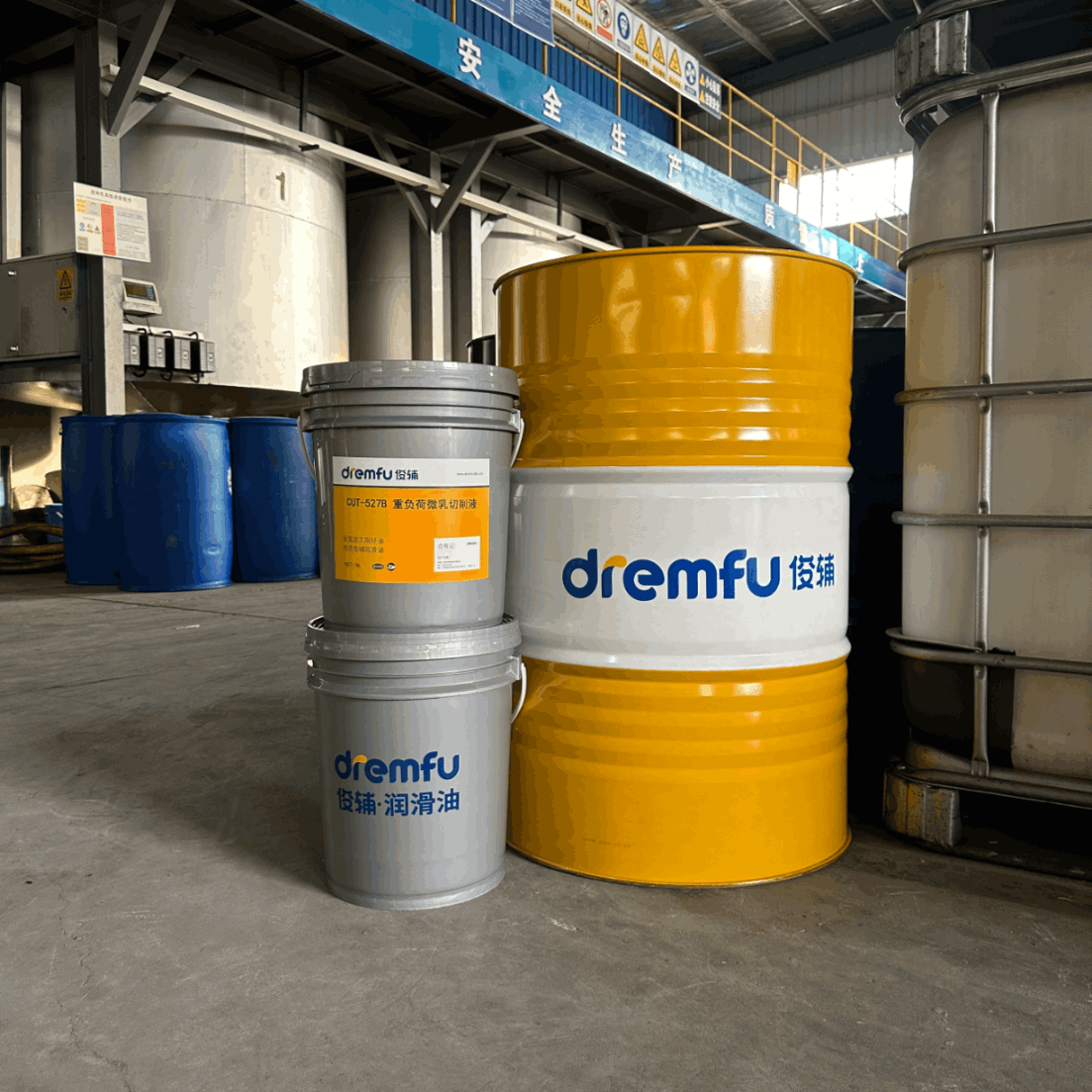

18L per plastic drum, 200L per large iron drum
